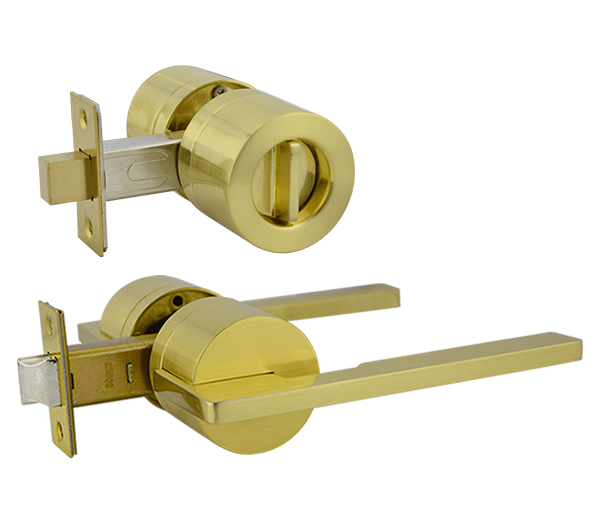

Brushed Brass Entry Lever Lockset – Pedder Series

Description

Innovative design door hardware with a touch of class that sets it apart from the rest

• Robust construction of solid alloy
• Brushed brass finish
• The entrance lever set consists of a passage Lever set with a separate same barrel-shaped single cylinder deadbolt
• Reversible for the left or right handed doors
• Suitable for new doors 32mm to 45mm thick.
• Both passage backing towers and single cylinder deadbolt knobs are identical
• 60mm backset for both latch and deadbolt
• Multiple sets can be keyed alike
• Comes as a complete set, including two handles, a keyed knob, a snibed knob, 3 keys, deadbolt, latch, T-shaped strike plate, screws and instructions
• The passage lever has a top 30mm thick cylinder style tower (tagged ‘A’ in drawing) that assemble to the architecturally-designed lever handle
• The bottom backing plate (tagged ‘B’ in drawing) is 11mm thick and is fixed to the door and remains still when handle (together top plate ‘A’) turns
• Both round plate ‘A’ and ‘B’ are 52mm in diameter, giving a streamlined look to the assembly, even when the top plate twists to open the door
• Available in Passage and Privacy sets and Dummy handle in this style
• Please note that the 52mm cylinder knob is not suitable for existing 54mm holes; it requires a custom cut-out.
